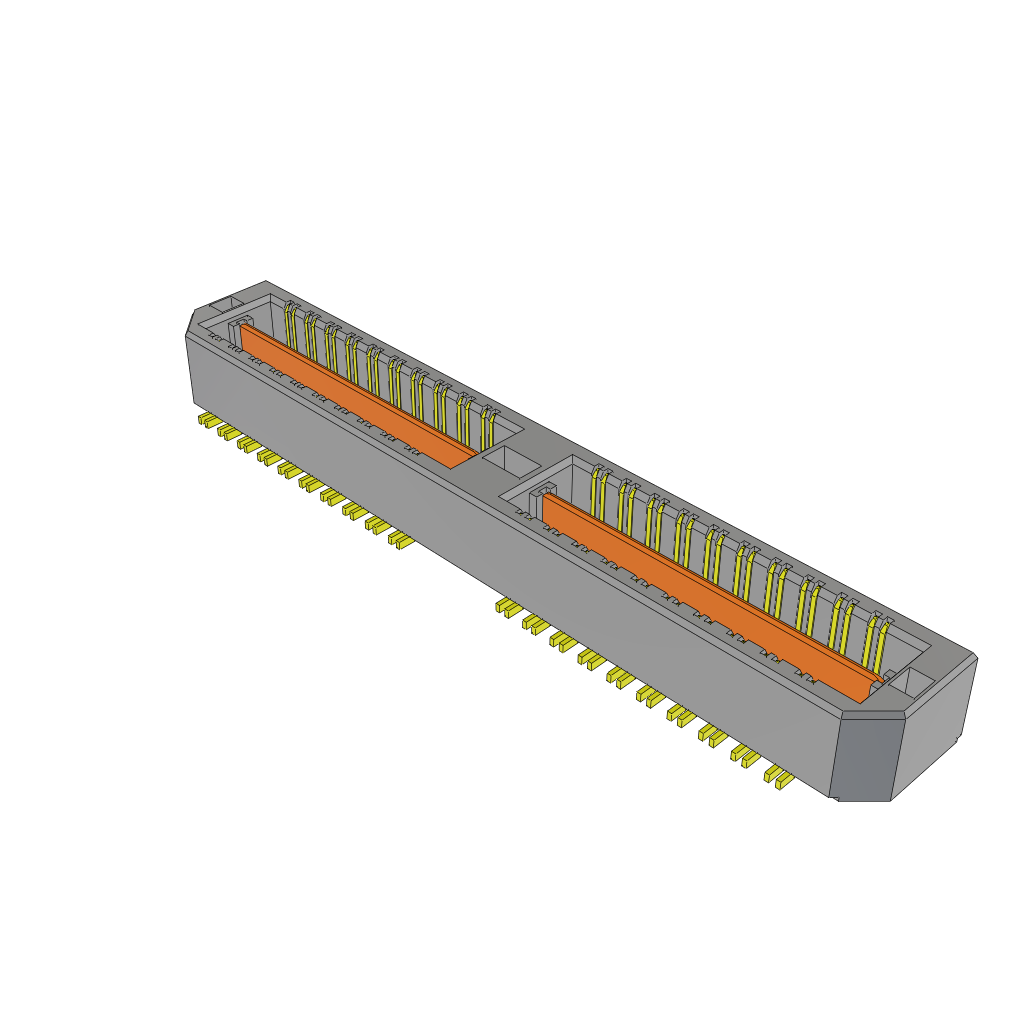

QSH-040-01-C-D-DP-A 0.50 mm Q Strip® High-Speed Ground Plane Socket Strip
Features
0.50 mm (.0197") pitch
Low profile 5 mm stack height
Up to 80 differential pairs
Up to 9.5 GHz / 19 Gbps
- 2D view may not be representative of the configured product. Please see 3D preview or CAD download for actual representation.
- Read our 3D Models Disclaimer.
- Please confirm configuration with the Series Print before final design in.
- For assistance with 3D Models, please contact [email protected].
- For 3D Models suitable for EM Field Solvers, please contact Samtec’s Signal Integrity Group.
| Stock |
|---|
| Distributor Stock: 0 pieces |
| OEM Pricing | |||||
|---|---|---|---|---|---|
| Breaks | 64 | 128 | 192 | 448 | 1152 |
| Price | $16.315 | $13.525 | $12.595 | $10.735 | $8.875 |
Please Login to see customer specific pricing.
Or you may directly contact support.
You don’t have an account? Create one
You don’t have an account? Create one
| Part Number | Ships Tomorrow | Packaging Type | Min | Mult | Difference |  |
|---|---|---|---|---|---|---|
| QSH-040-01-C-D-DP-A-FR | 0 | Bulk | 1 | 0 | Packaging | No |
| QSH-040-01-C-D-DP-A-TR | 0 | Tape & Reel | 1 | 500 | Packaging | No |
| QSH-040-01-L-D-DP-A | 0 | Tray | 64 | 64 | Plating | No |
| QSH-040-01-H-D-DP-A | 0 | Tray | 64 | 64 | Plating | No |
| QSH-040-01-F-D-DP-A | 0 | Tray | 64 | 64 | Plating | No |
| Packaging Notes |
|---|
| Packaging Type: Tray (64 parts per package) |
