EBTM-6-08-2.0-S-VT-1-L ExaMAX® 2.00 mm High-Speed Backplane Vertical Header

Features

4 or 6 pairs per column
2.00 mm (.0787") pitch
Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
PCIe® 6.0/CXL® 3.2 capable

Press-fit termination
Current rating: 4 A max
Voltage rating: 150 VAC/212 VDC max

2D view may not be representative of the configured product. Please see 3D preview or CAD download for actual representation.
Read our 3D Models Disclaimer.
Please confirm configuration with the Series Print before final design in.
For assistance with 3D Models, please contact [email protected].
For 3D Models suitable for EM Field Solvers, please contact Samtec’s Signal Integrity Group.

Add to Cart

Get a Free Sample

Request Pricing Document

Get a Formal Quote

View Mating Products:
Mating Products

Price & Availability
Packaging

Stock
Ships Tomorrow: 50 pieces
Distributor Stock: 0 pieces

OEM Pricing
Breaks	1	10	25	50	100	250	500	1000
Price	$28.134	$25.715	$23.498	$21.470	$19.477	$17.920	$16.475	$14.974

Please Login to see customer specific pricing. Or you may directly contact support.
You don’t have an account? Create one

Packaging Notes
Packaging Type: Tray (25 parts per package)

Evaluation and Development Kits

ExaMAX® Backplane SI Evaluation Kit

REF-205463-01

Company: Samtec

Next-generation data center equipment requires high-speed data paths across the backplane. Samtec's ExaMAX® high-speed backplane interconnects deliver 56 Gbps electrical performance. The ExaMAX® Backplane SI Evaluation Kit provides system designers and SI engineers an easy-to-use solution for testing the ExaMAX® High-Speed Backplane System. The ExaMAX® Backplane SI Evaluation Kit (REF-205463-01) consists of one ExaMAX® SI Backplane (REF-200839-01) and two ExaMAX® SI Linecards (REF-200840-01). The system routes eight, high-precision differential pairs over a backplane using ExaMAX® connectors in a 4x10 configuration. It supports configurable backplane trace lengths via user-selected paddleboard placement. Users can configure the system with additional ExaMAX® SI Linecards as desired. The ExaMAX® Backplane SI Evaluation Kit delivers a high-quality system with robust mechanical design. Please contact Samtec's technical experts at [email protected] for additional information.

Protocols

PDR	IB EDR	32GFC	64GFC	IB HDR	128GFC	IB NDR	256GFC	IB XDR
	25.8 Gbps	28.05 Gbps	28.9 Gbps PAM4	53.13 Gbps PAM4	56.1 Gbps PAM4	106.25 Gbps PAM4	112.2 Gbps PAM4	200 Gbps PAM4
32 Gbps NRZ/64 Gbps PAM4	Capable	Capable	Capable	Capable	Capable	No	No	No

PDR	USB 10Gbps	PCIe 4.0	USB 20Gbps	PCIe 5.0	USB 40Gbps	USB 80Gbps	PCIe 6.0	PCIe 7.0
	10 Gbps	16 Gbps	20 Gbps	32 Gbps	40 Gbps	40 Gbps	64 Gbps PAM4	128 Gbps PAM4
32 Gbps NRZ/64 Gbps PAM4	Capable	Capable	Capable	Capable	No	No	Capable	No

PDR	Ethernet	Ethernet	Ethernet	OIF CEI 56G	Ethernet	OIF CEI 112G	Ethernet	OIF CEI 224G
	10 Gbps	25 Gbps	50 Gbps PAM4	56 Gbps PAM4	100 Gbps PAM4	112 Gbps PAM4	200 Gbps PAM4	224 Gbps PAM4
32 Gbps NRZ/64 Gbps PAM4	Capable	Capable	Capable	Capable	No	No	No	No

PDR	SATA 2.0	SAS 2.0	SATA 3.0	SAS 3.0	SATA 3.5	SAS 4.0	CXL 1.1/2.0	CXL 3.2
	3 Gbps	6 Gbps	6 Gbps	12 Gbps	16 Gbps	22.5 Gbps	32 Gbps	64 Gbps PAM4
32 Gbps NRZ/64 Gbps PAM4	Capable	Capable	Capable	Capable	Capable	Capable	Capable	Capable

How is this calculated?

Catalog Pages

PDF Catalog Page - EBTM

Prints

EBTM - ExaMAX® 2.00 mm Vertical Header Assembly, Four Pairs

EBTM - ExaMAX® 2.00 mm Vertical Header Assembly, Six Pairs

EBTM/EBTF Mated Views

Mating Parts

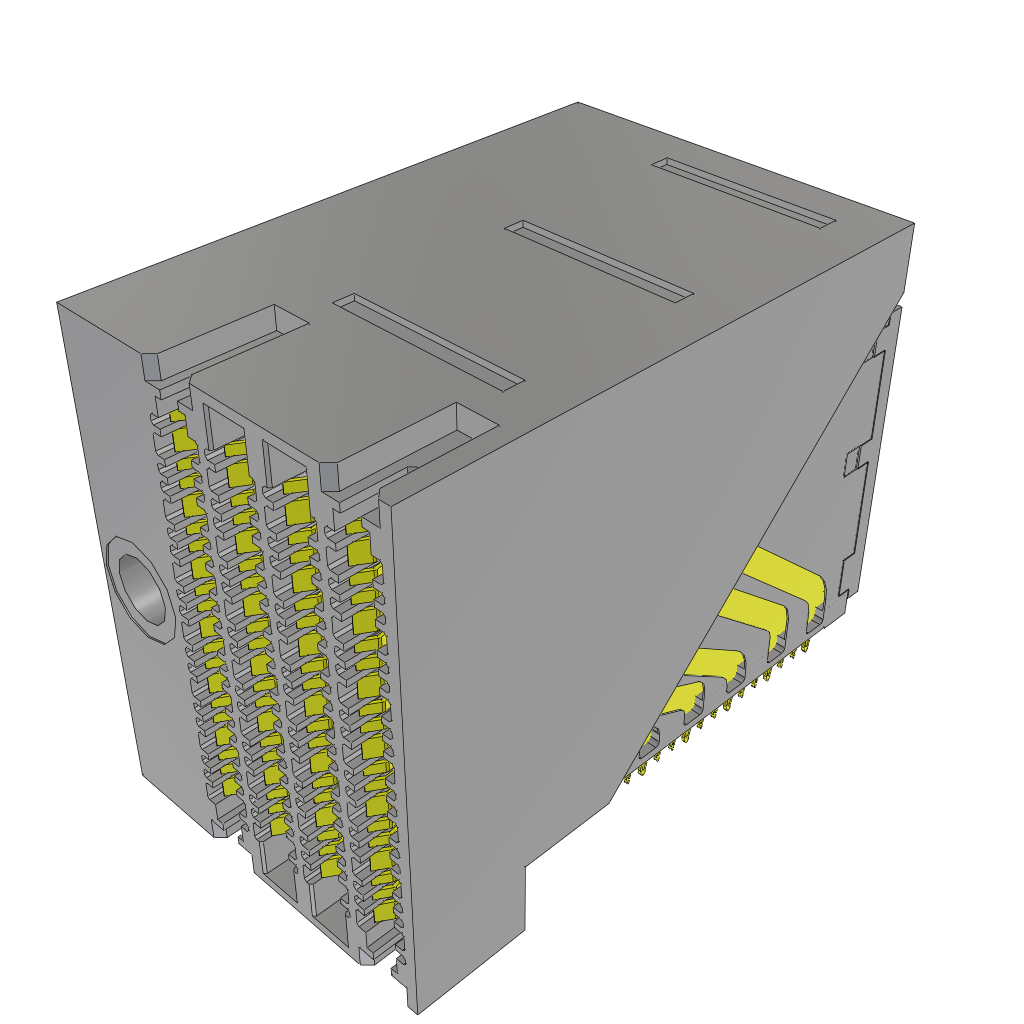

EBTF-6-08-2.0-S-RA-1-L

ExaMAX® 2.00 mm High-Speed Backplane Right-Angle Receptacle

Add to Cart

EBTF-6-08-2.0-S-RA-1-L

EXAMAX RIGHT ANGLE RECEPTACLE ASSEMBLY

Add to Cart

Test Reports

EBTM/EBTF-RA - Design Qualification Test Report - 4 Pairs

EBTM/EBTF-RA - Design Qualification Test Report - 6 Pairs

EBTM/EBTF/EPTS/EPTT - Design Qualification Test Report

EBTM/EBCF - Design Qualification Test Report

Tech Library

High-Speed Board-to-Board Interconnect Solutions Guide

ExaMAX® High-Speed Backplane eBrochure

Compliance

Compliance Tools
Material Declaration
EU RoHS and REACH Compliance

Recognitions
This product complies with UL document number E111594
RoHS compliant

Trade Compliance
HTS Code	8536.69
ECCN Code	EAR99

Environmental Compliance
Halogen	Halogen Free (Br/Cl per JS-709C)
Penta Octa	Compliant
Moisture Sensitivity Level	1
WEEE	Not in Scope
EU ROHS 2 + Pthalate Directive	Compliant
EU REACH	No SVHCs
China ROHS	Non Hazardous - E
California Proposition 65	WARNING: Risk of Cancer & Reproductive Harm (Nickel). www.p65warnings.ca.gov
EU CE Mark	Not Applicable
UKCA Mark	Not Applicable
PFAS	No Known PFAS
Regulatory Verification Method	Automatic

Country of Origin (“COO”) Information

Probable COO: MALAYSIA. For quantity-specific COO data, please use our pricing & delivery lookup tool.

Probable Country of Origin is our best effort to predict the COO. However, due to our Sudden Service and order flexibility, the Country of Origin is subject to change. If the COO at shipment changes from the latest Order Acknowledgement, Samtec will pass along the lesser of the two tariff surcharge rates.

For assistance with Compliance, please contact [email protected].
